ORC systems
Againity offers seven standard models from 50 kW and up to 2,5 MW, named after the amount of electricity generated in kW:
AT20, AT50, AT100, AT200, AT400, AT1000, AT2500
The systems are built as modules, which means that they can easily be combined and the maximum output is unlimited. Standard models’ dimensions vary from 3,5 x 1,6 x 2,1 m for the smallest model AT50 up to 20 x 2,5 x 2,9 m for AT2500. The smaller models are suitable for heat from solar panels, landfill gas and small pellet boilers, while the larger models are suitable waste management plants as well as industrial applications such as aluminum plants, gas turbines and large diesel generators. Read more about the various applications of our products under ”Applications”.

AT50, 50 kW
Installed capacity: 50 kW
Size (L+W+H): 3,5 x 1,6 x 2,1 m
Freq.:50-60 Hz
Voltage: 380-415 V

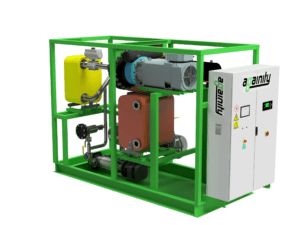

AT100, 100 kW
Installed capacity: 100 kW
Size (L+W+H): 3,8 x 1,5 x 2,4 m
Freq.:50-60 Hz
Voltage: 380-415 V

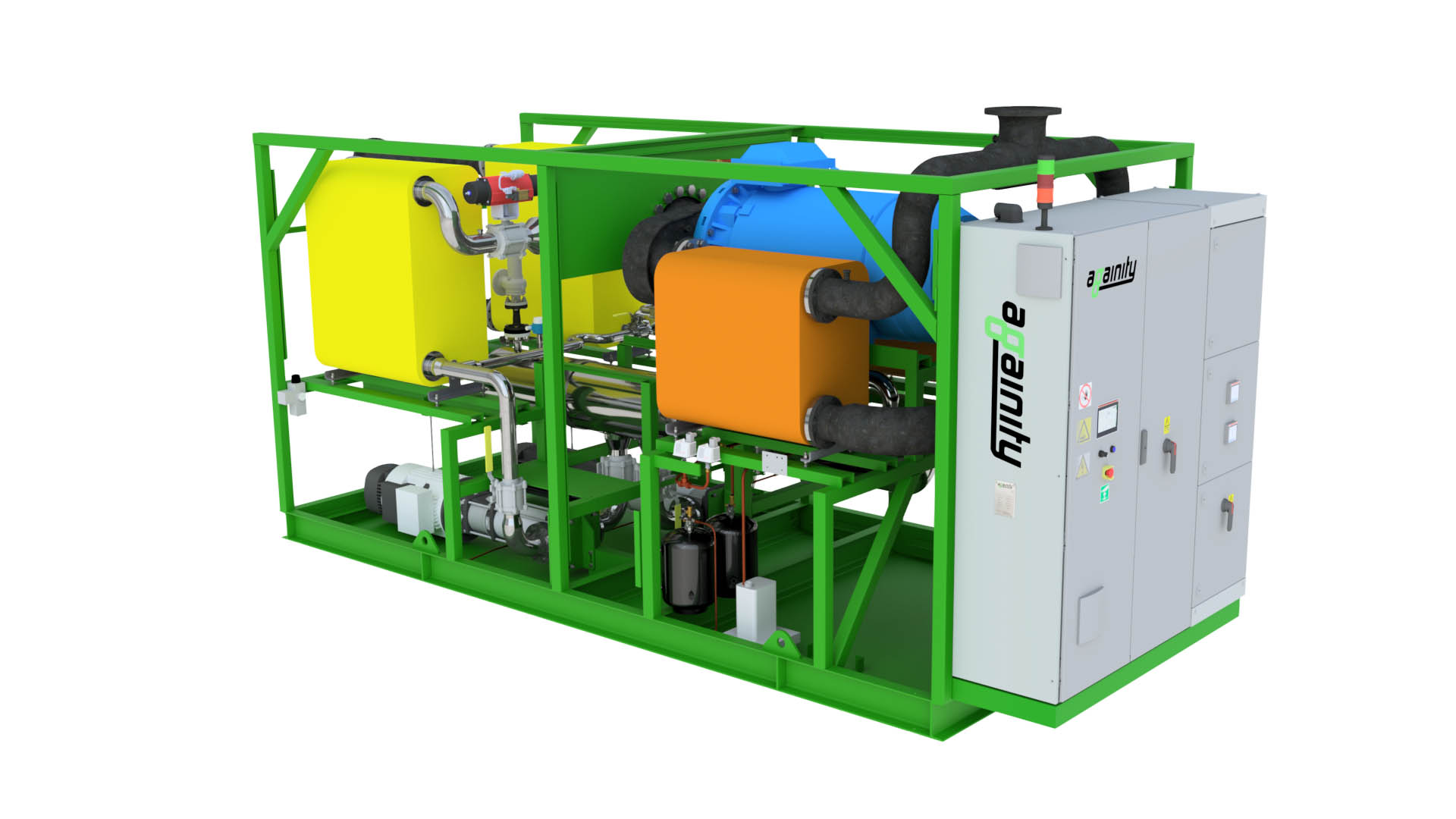

AT200, 200 kW
Installed capacity: 200 kW
Size (L+W+H): 5,2 x 2,3 x 2,4 m
Freq.:50-60 Hz
Voltage: 380-415 V

AT500, 500 kW
Installed capacity: 500 kW
Size (L+W+H): 6,0 x 2,3 x 2,5 m
Freq.:50-60 Hz
Voltage: 380-415 V

AT1000, 1000 kW
Installed capacity: 1000 kW
Size (L+W+H): 12,2 x 2,5 x 2,9 m, 40 fots container
Freq.:50-60 Hz
Voltage: 3000-6000 V

AT2500, 2500 kW
Installed capacity: 2500 kW
Size (L+W+H): 20 x 2,5 x 2,9 m, 40 + 20 fots container
Freq.:50-60 Hz
Voltage: 3000-6000 V
